NHX 200

Dimensions

Length x Width x Height (mm)

2040 x 745 x 1080 mm

Wheel Base (mm)

1400 mm

Curb Weight

143 kg

Front Suspension

Telescope fork

Rear Suspension

Mono Shock

Front/Rear Rim Material

Aluminum/ Aluminum

Front Tire Dimensions

110 / 70-17

Rear Tire Dimensions

130 / 70-17

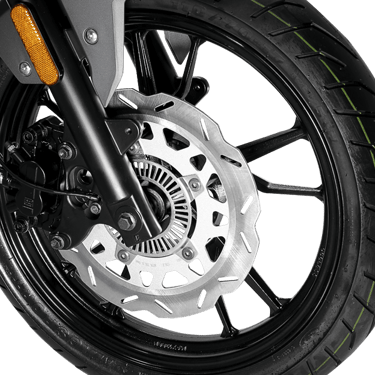

Front Brakes Type/Diameter

Disk Ø 288mm + ABS

Rear Brakes Type/Diameter

Disk Ø 222mm + ABS

Fuel Capacity

11 L

Power System

Emissions Standard

Euro 5

Engine Type/Cylinder

4-stroke engine, single cylinder

Displacement

183 c.c.

Fuel System

EFI

Max. Horsepower

13.5 kW / 8500 rpm

Max. Torque

15.7 Nm / 7500 rpm

Max. Speed

129 km/h

Cooling System

Liquid

Transmission

Gear / 6-speed

Electric System

Starting System

Electrical starter

Headlight

LED

Taillight

LED

Front Position Lamp

LED

Front/Rear Turning Signal Light

LED/ LED
