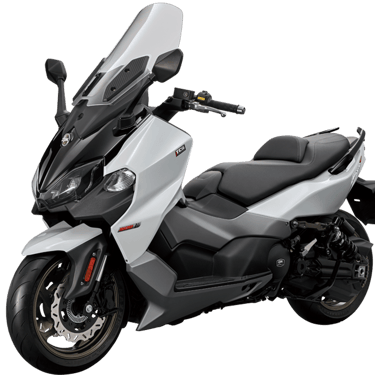

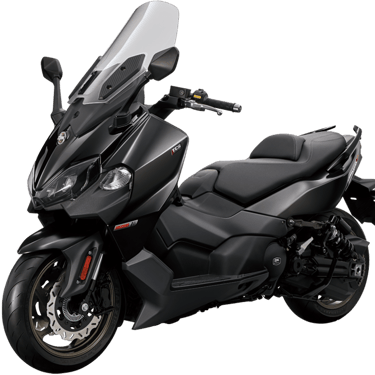

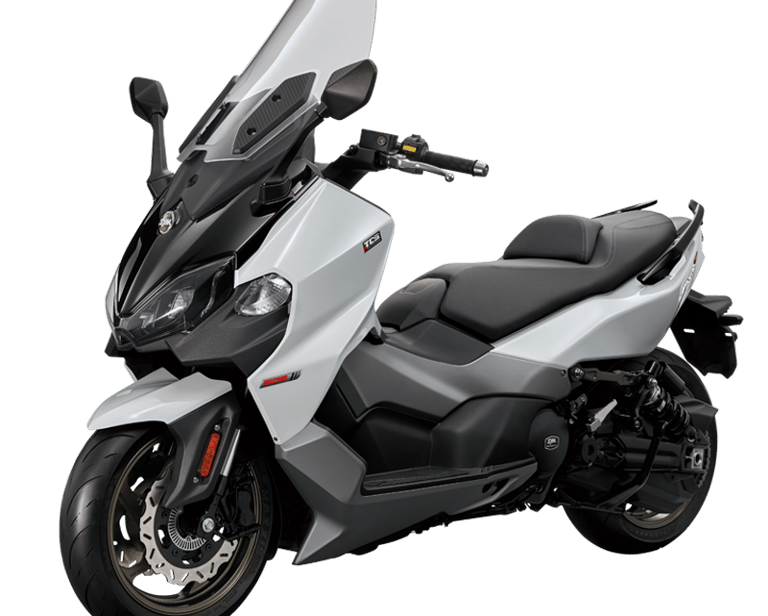

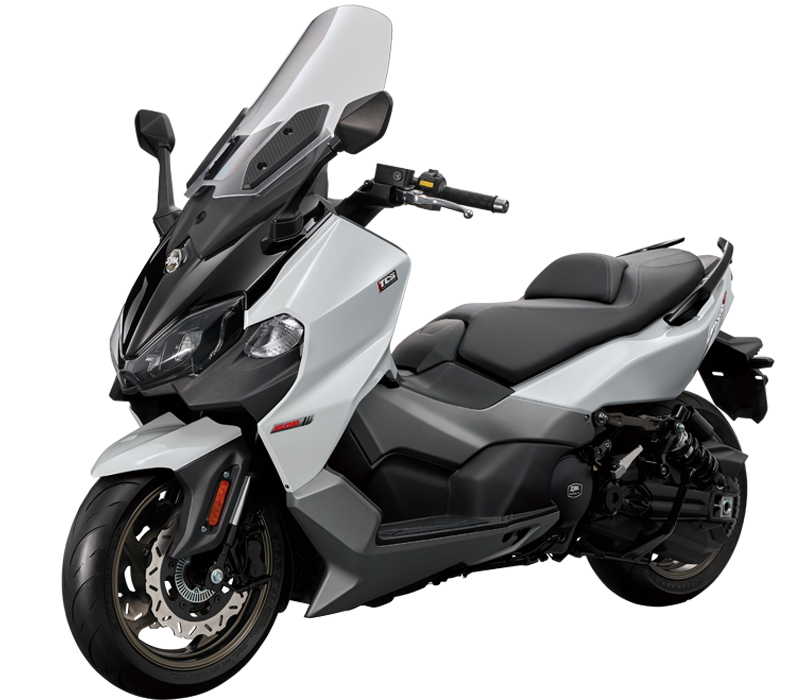

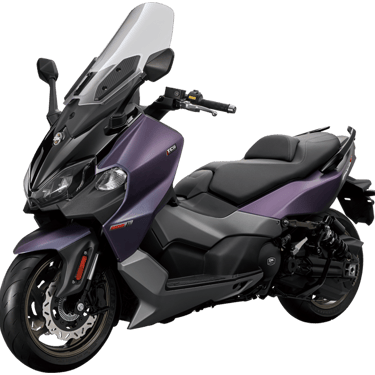

Maxsym TL 500

Dimensions

Length x Width x Height (mm)

2215 x 800 x 1442 mm

Wheel Base (mm)

1543 mm

Curb Weight

227 kg

Front Suspension

upside-down Fork

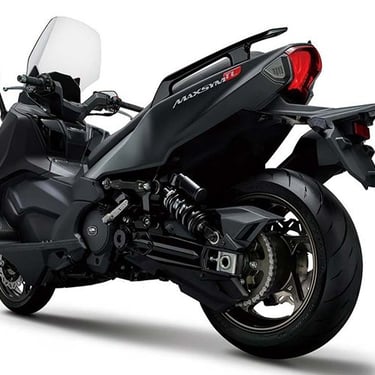

Rear Suspension

Single-sided Mono-shock with Multi-link

Front/Rear Rim Material

Aluminum/ Aluminum

Front Tire Dimensions

120 / 70 R15

Rear Tire Dimensions

160 / 60 R15

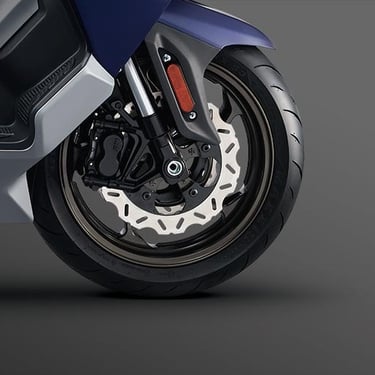

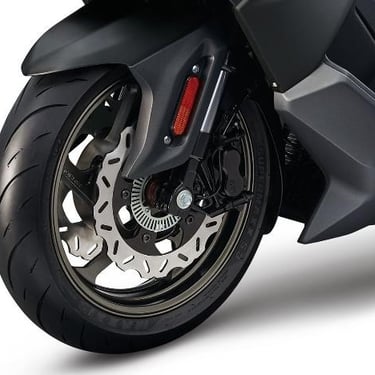

Front Brakes Type/Diameter

Disc 275*2 + ABS

Rear Brakes Type/Diameter

Disc 275 + ABS

Fuel Capacity

12.5 L

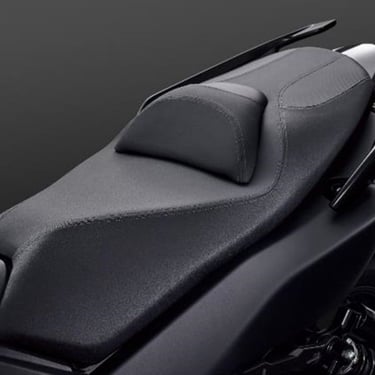

Seat Height (mm)

795 mm

Power System

Emissions Standard

Euro 5

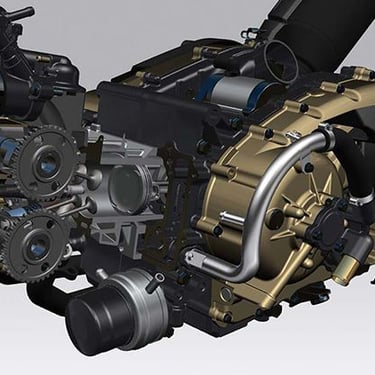

Engine Type/Cylinder

4-stroke engine, incline twin cylinder

Displacement

508 c.c.

Fuel System

E.F.I.

Max. Horsepower

33.5 Kw / 6750 rpm

Max. Torque

49.9 Nm / 5250 rpm

Max. Speed

139 km/h

Cooling System

Liquid

Transmission

C.V.T.

Electric System

Starting System

Electrical starter

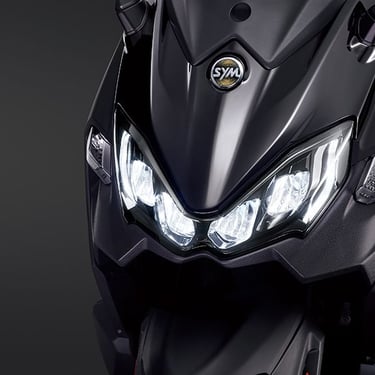

Headlight

LED X2

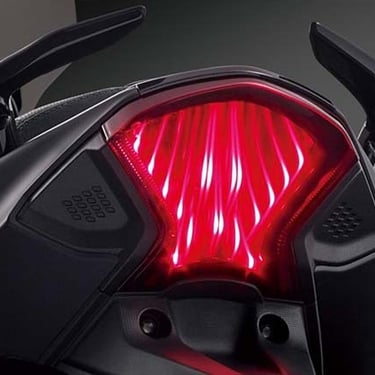

Taillight

LED X1

Front Position Lamp

LED X2

Front/Rear Turning Signal Light

LED X2/ LED X2
