Adventure Series 200i

Dimensions (mm) 1870(L)x620(W)x1115(H)

Wheelbase (mm) 1370mm

Dry Weight (kg) 137kg

Max Load (kg) 169kg

Ground Clearance (mm) 330mm

Seat Height (mm) 780mm

Displacement (cc) 181cc

Engine Type Single Cylinder, Water Cooled 4T, 4V DOHC

Bore/Stroke 63/58m

Compression Ratio 12.1:1

Max net power, rate 13.7/8250

Max net torque, rate 15.5/6500

Fuel Injection Magnetti Marelli

Ignition Electronic Inductive

Starting Method Electric

Chassis Space frame tubular chassis with steel/ABS

Front Suspension Double hydraulic preload adjustable

shock absorber with coil spring and anti dive linkage system

Rear Suspension Double coil spring with adjustable (4

positions) hydraulic shock absorber

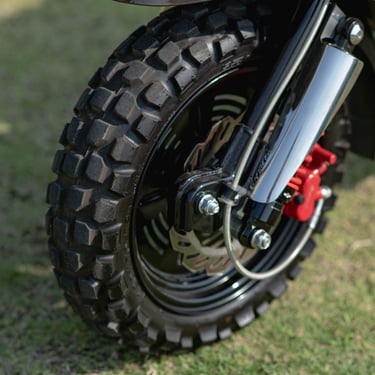

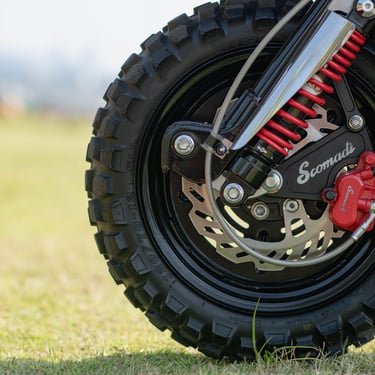

Front Tyre Tubeless 110/70-12

Rear Tyre Tubeless 120/70-12

Brake ABS, (F) 220mm Disc, (R) 220mm Disc

Battery (volts) 12 volts

Fuel Tank Capacity (litres) 11 litres

Emissions Compliance Complies with Euro 4 multi-directive
