TG 300

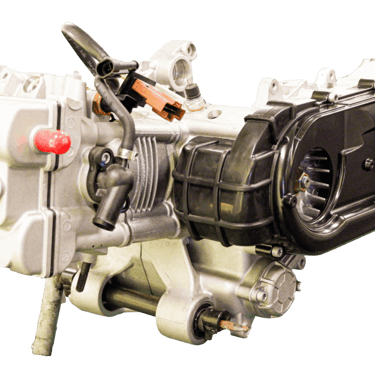

ENGINE TYPE

Single, Liquid Cooled, 4V SOHC

DISPLACEMENT

278cc

BORE X STROKE

75.0/63.0

COMPRESSION RATION

11.0:1

RATED OUTPUT

18.5kw/7500rpm

MAX. TORQUE

23.0Nm/5000rpm

FUEL SUPPL

Magnetti Marelli EFI

EXHAUST SYSTEM

Euro5

CERTIFICATION

Euro 5

CLUTCH

CVT

GEARBOX

Automatic

FINAL DRIVE

Belt

IGNITION

Electric

COOLING SYSTEM

Liquid

BATTERY

12V, 9.0Ah

STARTING

Electric

PRIMARY DRIVE

Belt

FRAME

Steel Cradle

FRONT SUSPENSION

Double Hydraulic

FRONT BRAKE

ABS Disc 220mm

REAR SUSPENSION

Double Shock

REAR BRAKE

ABS Disc 220mm

FRONT RIM TYPE

Alloy Multi Spoke

REAR RIM TYPE

Alloy Multi Spoke

REAR RIM DIMENSION

12

FRONT TYRE

110/70/12

REAR TYRE

120/70/12

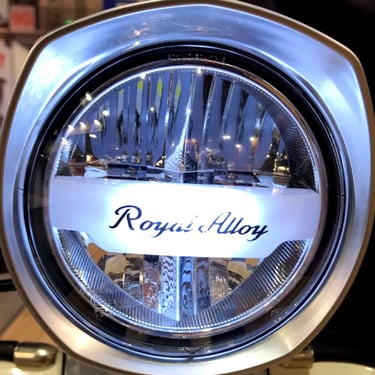

HEADLIGHT LAMP

LED

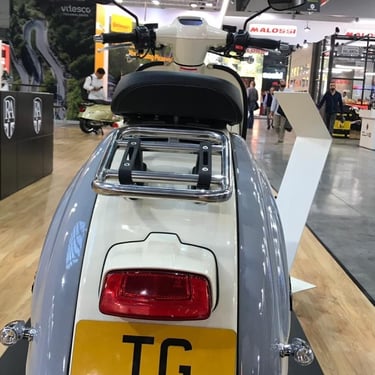

TAILLIGHT LAMP

LED

LENGTH

1845mm

WIDTH

670mm

HEIGHT

1115mm

GROUND CLEARANCE

160mm

UNLADEN WEIGHT

152kg

PERMITTED TOTAL WEIGHT

340kg

USEABLE TANK VOLUME

11 lt

WHEELBASE

1390

SEAT HEIGHT

770mm
