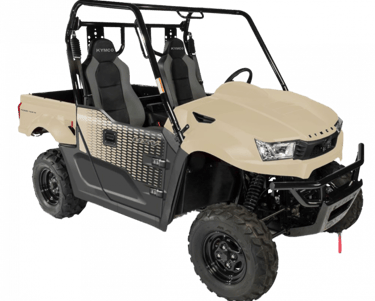

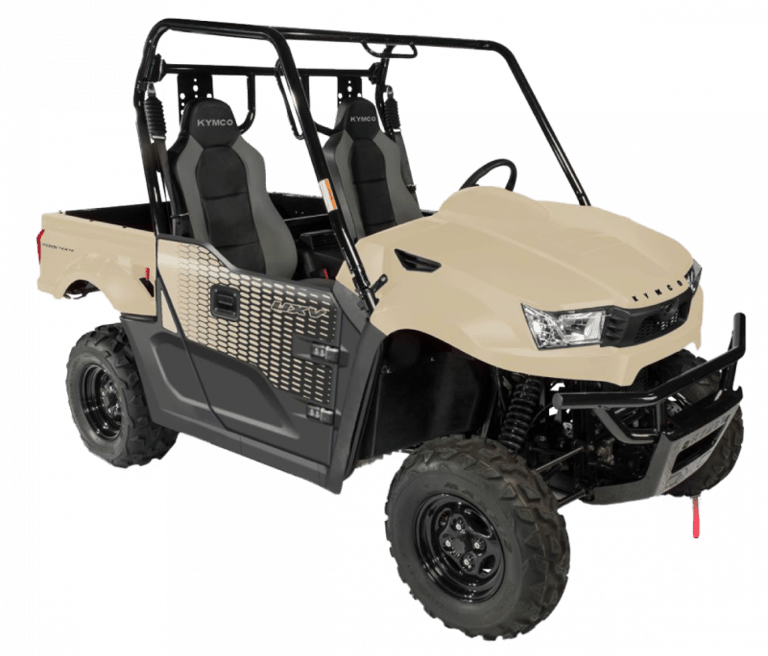

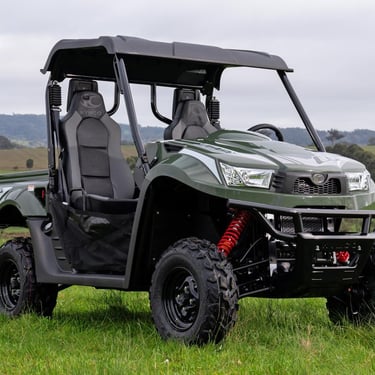

UXV 700i

ENGINE

Engine SOHC, liquid-cooled, four-stroke

Displacement 695cc

Power 45 HP @ 6500 RPM

Bore x Stroke 102 x 85 mm

Compression ratio 10.5:1

Fuel system Electronic Fuel Injection

Ignition ECU

Starting system Electric

Transmission CVT automatic with dual range, reverse gear and active engine braking

Final drive Push button selectable 4WD with locking front differential, Shaft

SUSPENSION

Front suspension Independent dual A-Arm with adjustable Kaifa gas-reservoir shock absorbers

Rear suspension Independent dual A-Arm with Kaifa gas-reservoir shock absorbers

Front tyre size 25 x 8 - 12 inch / Steel wheels

Rear tyre size 25 x 10- 12 inch / Steel wheels

Front brakes Dual hydraulic disc, 202 mm

Rear brakes Single hydraulic disc, 200 mm

CAPACITY

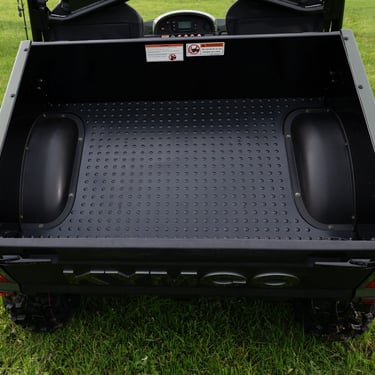

Cargo bed size 1210 mm x 820 mm x 310 mm

Cargo bed payload 200 kg

Tow 550 kg

SIZE / WEIGHT

Length x Width x Height 2870 mm x 1500 mm x 1850 mm

Wheelbase 1910 mm

Ground clearance 300 mm

Fuel capacity 32 l

Dry weight 543 kg
