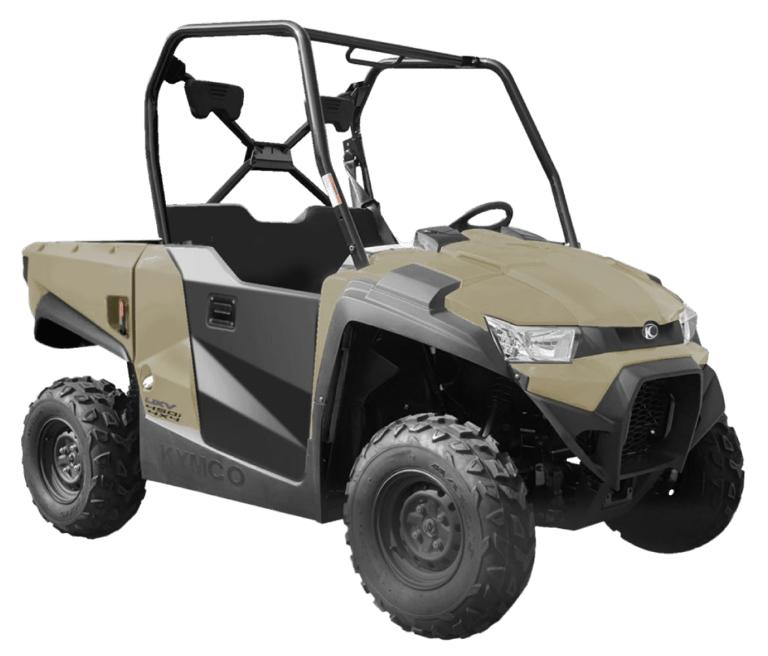

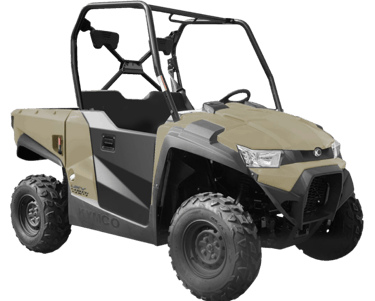

UXV 450i

ENGINE

Engine SOHC, liquid-cooled, four-stroke

Displacement 443cc

Power 33 HP @ 7500 RPM

Bore x Stroke 89 x 71.2 mm

Compression ratio 9.1:1

Fuel system Electronic Fuel Injection

Ignition ECU

Starting system Electric

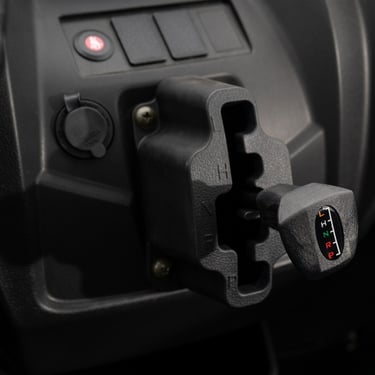

Transmission CVT automatic with dual range and reverse gear

Final drive Push button selectable 4WD with locking front differential, Shaft

SUSPENSION

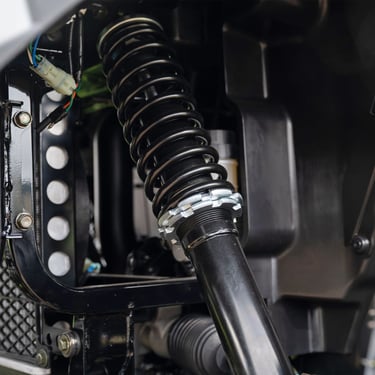

Front suspension Independent dual A-Arm with twin shock absorbers

Rear suspension Independent dual A-Arm with twin shock absorbers

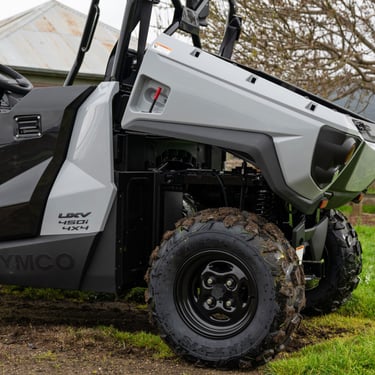

Front tyre size 25 x 8 – 12 inch / Steel wheels

Rear tyre size 25 x 10 – 12 inch / Steel wheels

Front brakes Dual hydraulic disc, 202 mm

Rear brakes Single hydraulic disc, 200 mm

CAPACITY

Cargo Bed Size 1170 mm x 730mm x 302 mm

Cargo Bed 190 kg

Towing 550 kg

SIZE / WEIGHT

Length x Width x Height 2770 mm x 1440 mm x 1850 mm

Wheelbase 1829 mm

Ground clearance 300 mm

Fuel capacity 32 l

Dry weight 496 kg
