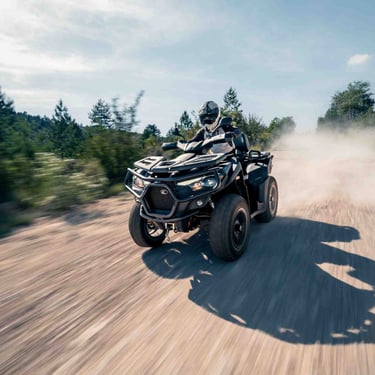

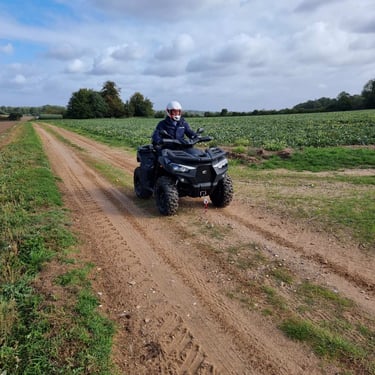

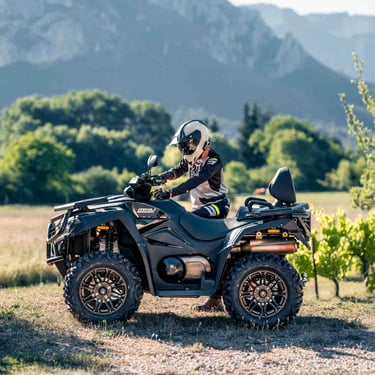

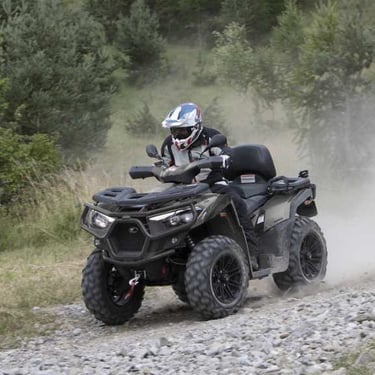

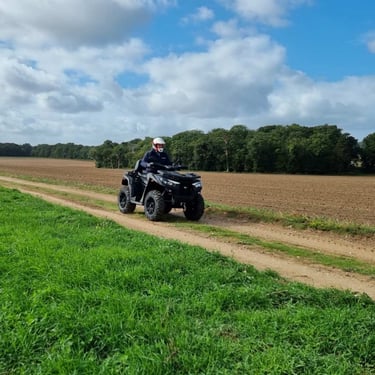

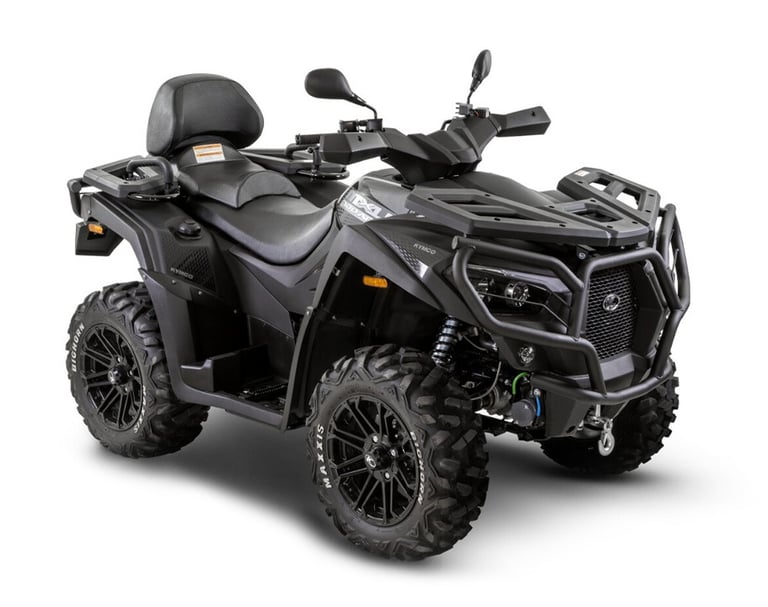

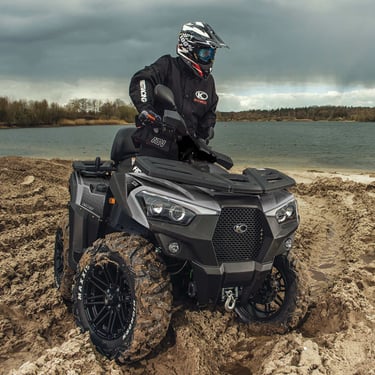

MXU 700i

ENGINE

Engine Type SOHC, 4 Stroke

Cooling System Liquid Cooling

Fuel System Fuel Injection

Displacement 695 cc

Max. Power Output (kW) 29 kW (39 HP)

Start Electric

Bore & Stroke (mm) 102 x 85 mm

Ignition CDI

Gears H,L,N,R,P Auto Transmission

EPS Yes

FRAME:

Dry Weight Amount 410 kg

Length x Width x Height (mm) 2140 x 1245 x 1340mm

Seat Height (mm) 892 mm

Wheelbase (mm / Inch) 1297 mm / 51"

Fuel Tank (L) 21 L

Drive Electric 2WD - 4WD (Diff-Lock)

Turning Radius (mm) 3450 mm

Towing (kg) 150 kg

Front Cargo Rack (kg) 52 kg

Rear Cargo Rack (kg) 95 kg

SUSPENSION:

Front Wheel Size 26/8 x 14 (Bighorn)

Rear Wheel Size 26/10 x 14 (Bighorn)

Front Suspension Double A-Arm

Rear Suspension Double A-Arm (IRS)

Front Brake System Hydraulic Disc (CBS)

Rear Brake System Hydraulic Disc (CBS)

Ground Clearance (mm / Inch) 272 mm / 10.7"
