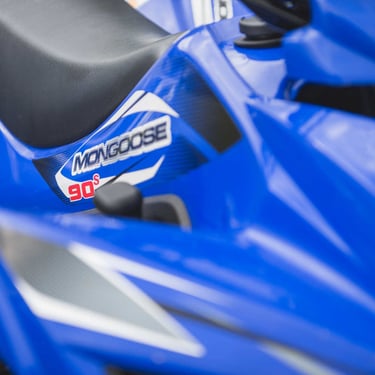

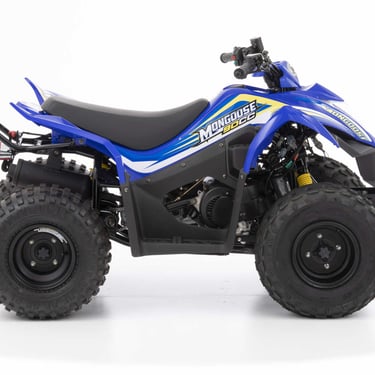

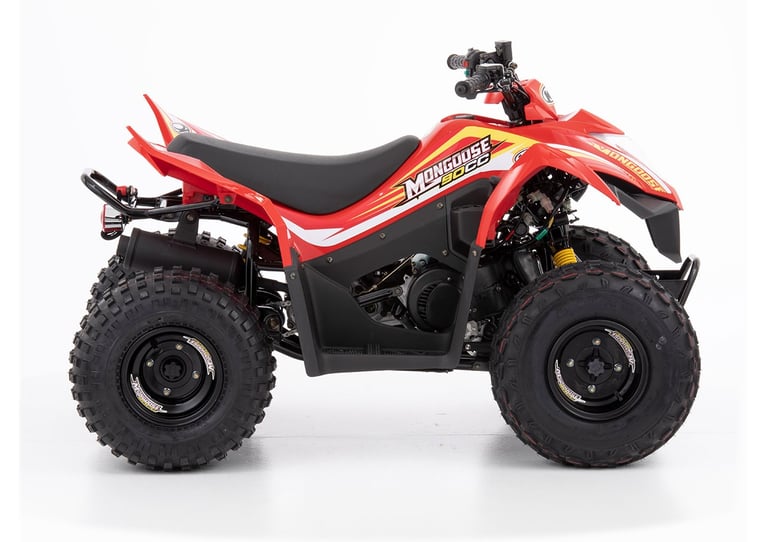

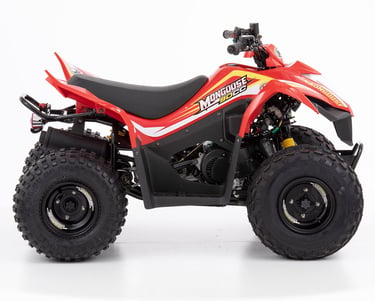

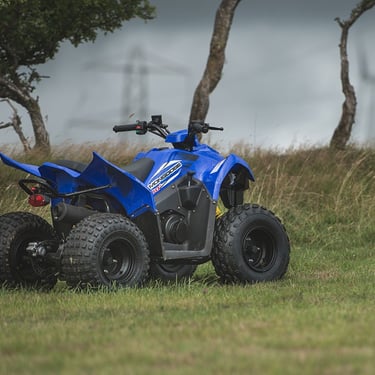

Mongoose 90S

ENGINE

Engine Type SOHC, 4 Stroke

Cooling System Fan Cooling

Fuel System Carburetor

Displacement 89 cc

Max. Power Output (kW) 4.7 kW (6.3 HP)

Start Electric / Kick

Bore & Stroke (mm) 47 x 51.8 mm

Ignition CDI

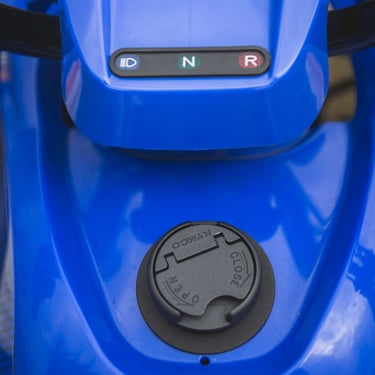

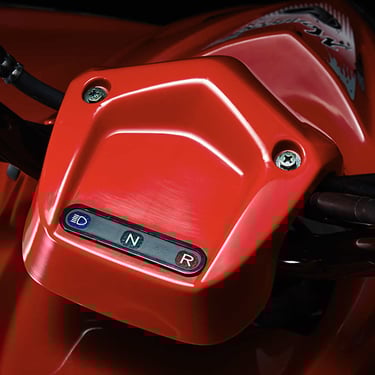

Gears F,N,R Auto Transmission

EPS None

FRAME

Dry Weight Amount 105 kg

Length x Width x Height (mm) 1148 x 914 x 963 mm

Seat Height (mm) 650 mm

Wheelbase (mm / Inch) 963 mm / 37.9"

Fuel Tank (L) 6 L

Drive 2WD

Turning Radius (mm) 2650 mm

Towing (kg) None

Front Cargo Rack (kg) None

Rear Cargo Rack (kg) None

SUSPENSION

Front Wheel Size 18 x 7 x 8

Rear Wheel Size 18 x 7 x 8

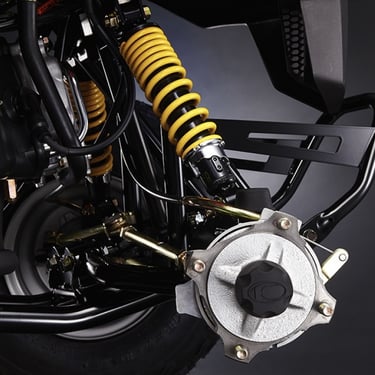

Front Suspension Single A-Arm

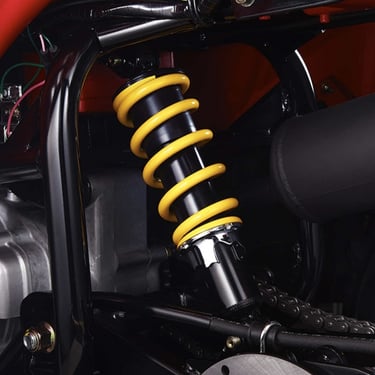

Rear Suspension Swing Arm

Front Brake System Drum

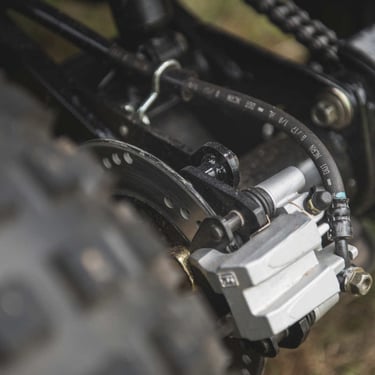

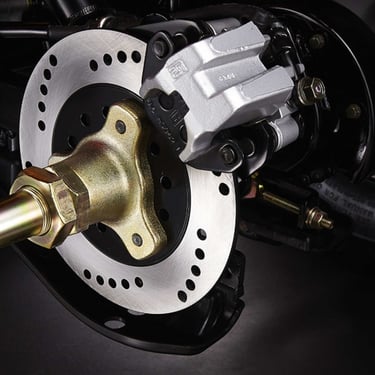

Rear Brake System Hydraulic Disc

Ground Clearance (mm / Inch) 184 mm / 7.25"
