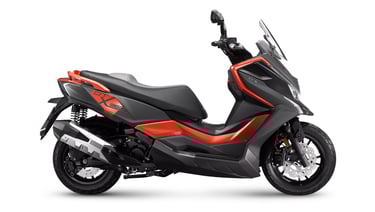

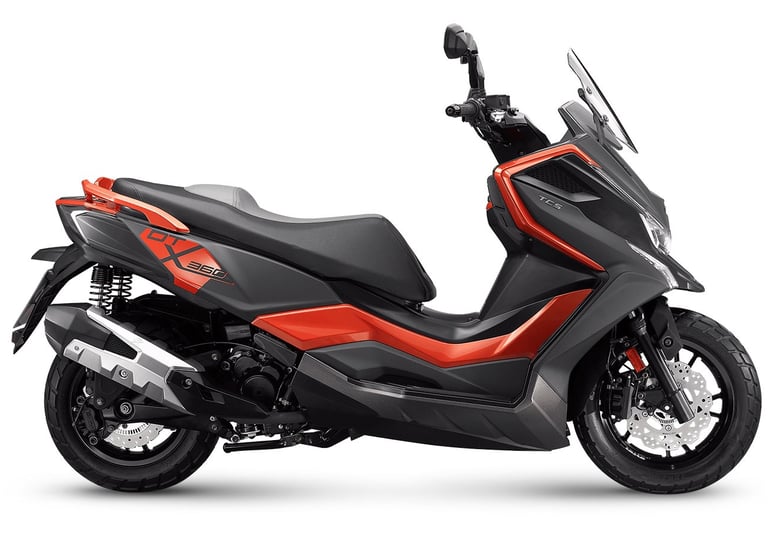

Kymco DTX360

SPECIFICATIONS

ENGINE

SOHC, liquid-cooled, four-valve single-cylinder

Displacement321cc

Power29.8hp 21.2 KW @ 7250 RPM

Bore x Stroke75.3 x 72 mm

Fuel system

Electronic Fuel InjectionIgnition

ECU Starting system

ElectricTransmission Twist and go CVT automatic

SUSPENSION

Front suspension

Telescopic fork / 37mm fork, 110mm travel

Rear suspension

Twin adjustable rear shocks / preload adjustment, 108mm travel

Front tire size120 x 80 – 14 inch

Rear tire size150 x 70 – 13 inchFront brakesHydraulic disc, 260 mmRear brakesHydraulic disc, 240 mm

SIZE / WEIGHT

Length x Width x Height

2165 mm x 780 mm x 1290 mm

Wheelbase 1545 mm

Seat Height 800 mm

Fuel capacity 12.5 L

Weight 194 kg (wet)

Other colour choices Dark Peridot or Black/Orange
