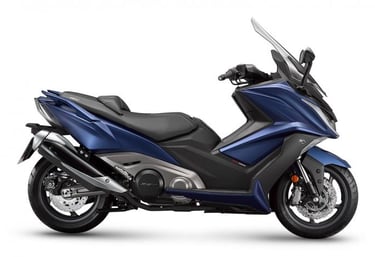

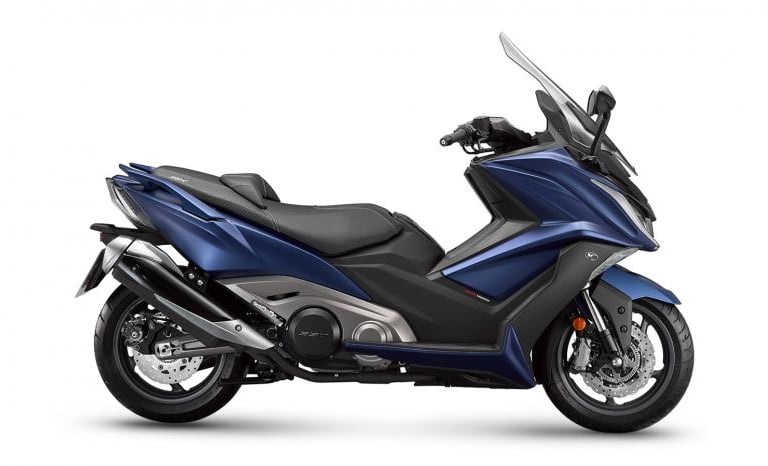

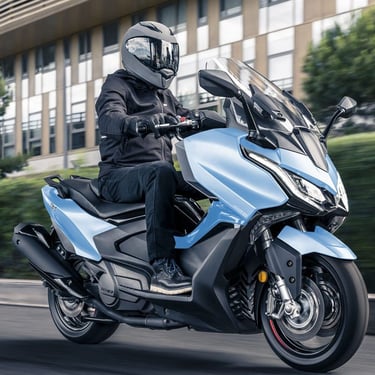

Kymco AK550

ENGINE

Engine TypeIn-Line, 2 Cylinders, DOHC, 8 Valves

Cooling SystemLiquid Cooling

Fuel SystemFuel Injection

Displacement 550.4 cc

Max. Power Output (kW/rpm) 39.3 kW (52.7 HP) / 7500 rpm

Max. Torque (Nm/rpm) 55.64 Nm / 5500 rpm

Wheel Drive System CVT

Start Electric

FRAME

Dry Weight Amount (kg) 226 kg (Aluminum Frame)

Length x Width x Height (mm) 2165 x 795 x 1400 mm

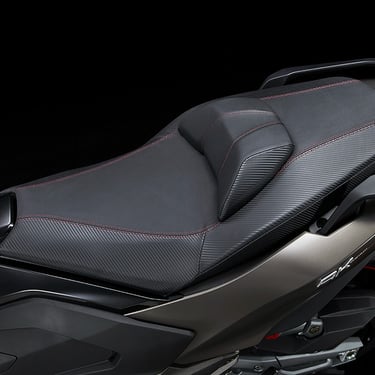

Seat Height (mm) 785 mm

Wheelbase (mm) 1580 mm

Fueltank (L)15 L

SUSPENSION

Front Wheel Size 120/70-15

Rear Wheel Size 160/60-15

Wheel Material Aluminum Alloy

Front Suspension 41 mm Up-Side Down Fork

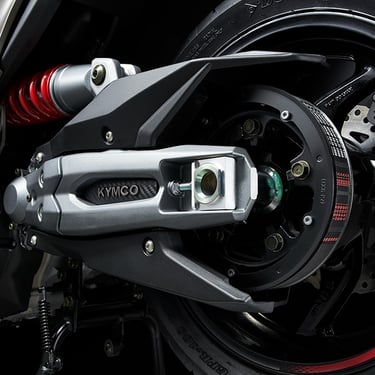

Rear Suspension Horizontal Trailing ArmBrake System ABS

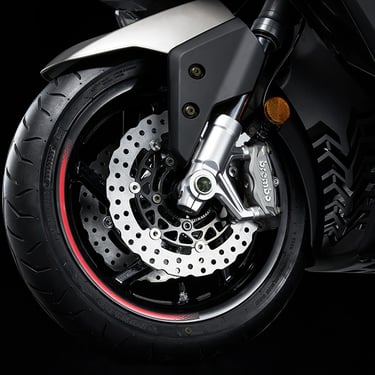

Front Brake System 270 mm Dual Disk

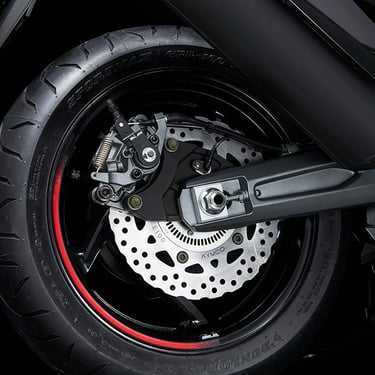

Rear Brake System 260 mm Disk
