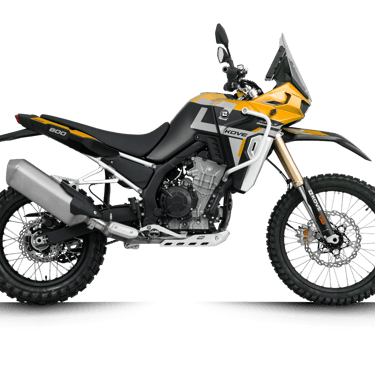

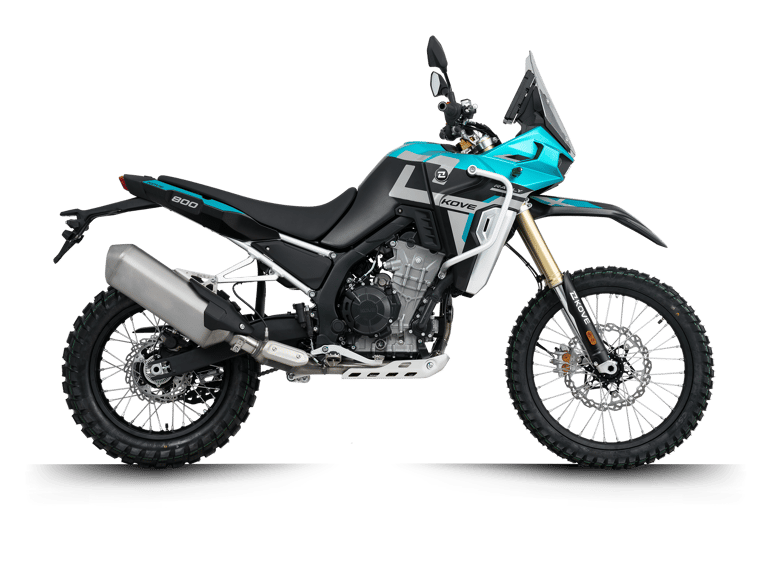

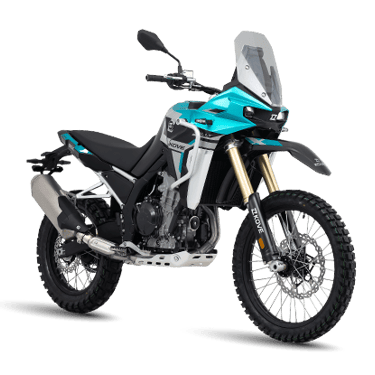

800X Rally

ENGINE

Engine type Twin cylinders, DOHC, liquid-cooled

Dispalcement 799cc

Bore x stroke 88×65.7mm

Compression ratio 13:1

Max. power 71KW/9000rpm

Max. torque 80N.m/7500rpm

Fuel supply EFI

Max. speed 210km/h

CHASSIS

Frame type Diamond shape, dual-wing beam

Front suspension KYB, pre-load/damping adjustable

Rear suspension KYB, pre-load/damping adjustable

Front brake Dual discs, 4-piston opposed calliper/ABS

Rear brake Disc, single piston calliper/ABS

Front tire 90/90-21

Rear tire 140/80-18

Steering angle 32°

Rake 26.15°

Instrumentation TFT

Other TCS, quick shifter, slipper clutch

DIMENSIONS

Length X Width X Height 2267×810×1395mm

Wheelbase 1545mm

Seat height 890mm

Tank capacity 20L

Curb weight 176kg

Ground clearance 293mm
