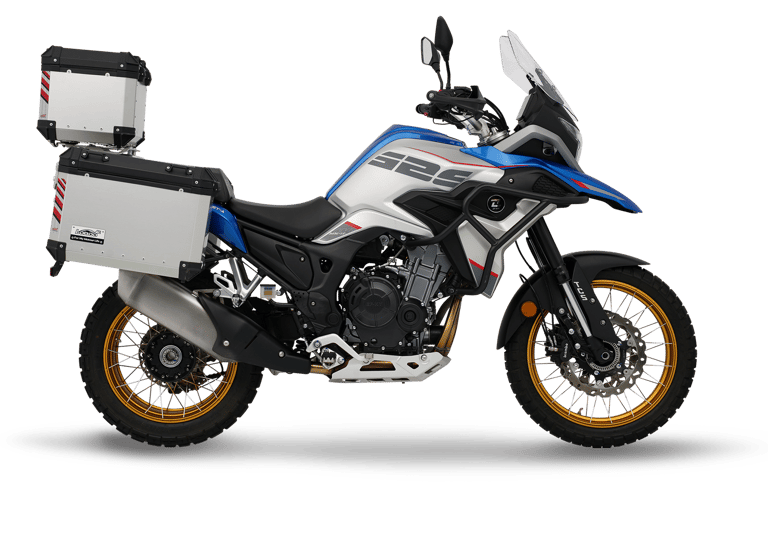

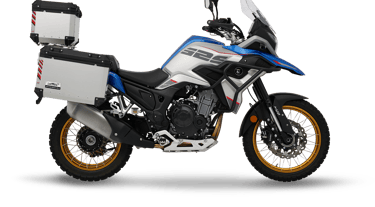

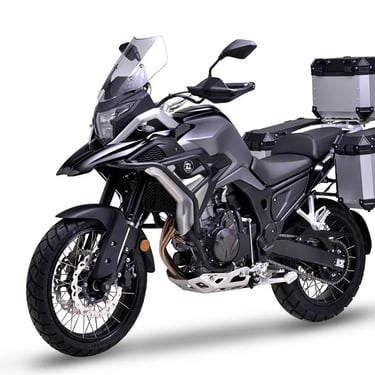

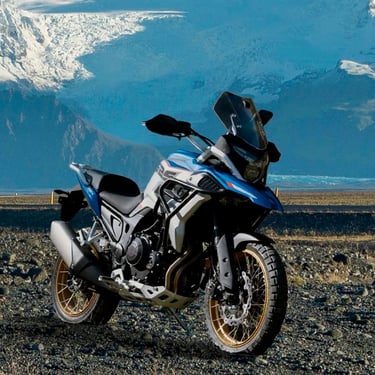

525X Adventure

ENGINE

Engine type Twin cylinders, DOHC, water-cooled, 4 valves per cylinder

Displacement 493.9cc

Bore x stroke 68×68mm

Compression ratio 11.5:1

Max. power 36.6KW/9000rpm

Max. torque 48N·m/6500rpm

Fuel supply EFI

Max. speed 170km/h

0-100 km/h start acceleration 6s

Fuel consumption 4.2L/100km

CHASSIS

Frame type Diamond shape, dual-wing beam

Front suspension 41mm KYB inverted fork Multi-adjustable

Rear suspension Aluminium swingarm with multi-adjustable KYB monoshock

Front brake NISSIN, dual dics, 2-piston calliper/ABS

Rear brake NISSIN, single disc, single piston calliper/ABS

Front tire Pirelli, 110/80 R19

Rear tire Pirelli, 150/70 R17

Rake 25.5°

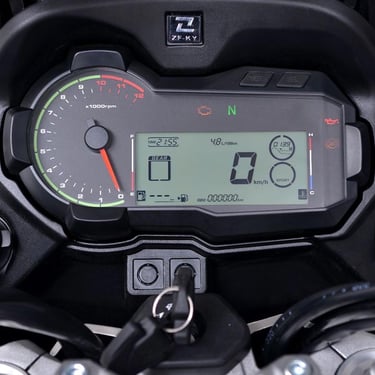

Instrumentation TFT

DIMENSIONS

Length X Width X Height 2197x930x1370mm

Wheelbase 1465mm

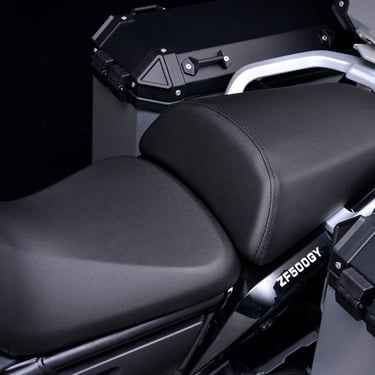

Seat height 820mm

Tank capacity 20L

Curb weight 215kg (with 3 boxes)

Ground clearance 210mm

Trail 106mm
